PLS 90E System
|
|
|
90º LAYOUT LASER FOR SLOPE AND SLAB
|
|
The PLS 90E was designed to tackle the most challenging aspect of
aligning job sites, PRECISE 90º.
Use the Daylight Detector to layout square in bright sunlight on the
level or on a gradient.
| PLS 90E Specifications |
| Range | 76m |
| Angle | Precise 90º |
| Accuracy | 3mm @ 30m |
| Self Leveling Class II Laser Product |
|
|
|
|
| |
PLS 180 System |
|
|
PLUMB, LEVEL AND SQUARE HAND HELD LASER LINE TOOL
|
|
Lay out all your alignment tasks with the PLS 180 in the palm of your hand, fast accurate and portable the PLS 180 saves you time and money.
Considered to have unlimited applications indoors and outside with the unique daylight detector.
| PLS 180 Specifications |
| Range | 75m |
| Weight | 770g |
| Accuracy | 3mm @ 10m |
| Self Leveling Class II Laser Product |
|
|
|
|
| |
PLS 360E System
|
|
|
360 DEGREE LASER LEVEL
|
|
Fully self leveling, the PLS 360E provides you with a 360 degree line of reference. The PLS 360E offers one button set up for indoor-outdoor applications. Unlike rotary lasers with sensitive moving parts, this compact, bright and durable tool has no complicated features or multiple knob adjustments.
| PLS 360 Specifications |
| Range | 150m (Diameter) |
| Weight | 900g |
| Accuracy | 3mm @ 30m |
| Self Leveling Class II Laser Product |
|
|
|
|
| |
PLS 3 |
|
|
|
Do you still use a plumb bob?.Lay out reference points faster than
traditional, labour intensive methods.
Plumb instantly from floor to ceiling or from 15m off the ground!
Self-leveling: no time wasted with bubble vials.
|
| Range | 30m |
| Accuracy | 3mm @ 10m |
| Self Leveling Class II Laser Product |
|
|
|
|
| |
PLS 5 |
|
|
PROFESSIONAL INTERIOR-EXTERIOR ALIGNMENT TOOL
|
|
The PLS 5 is designed to give layout reference points, with five laser dots each operating up to 75m.This tool eliminates the need for any 3-4-5 calculations. Layout a full construction grid on the site before commencing saving you time and money. The PLS 5 unique daylight detector ensures work can be done in bright sunlight.
|
| Range | 76m |
| Layout Angle | 90° Square |
| Accuracy | 3mm @ 30m |
| Weight | 800g |
| Self Leveling Class II Laser Product |
|
|
|
|
| |
PLS HVR505 System
|
|
|
ROTATING LASER For Mid Range Applications. |
 |
Fully self leveling rotating laser for vertical and horizontal applications. Use the detector for exterior use and the remote control for easy access and speed adjustments.
| PLS HVR505 R & G Specifications |
|
|
300 m |
| Accuracy |
3mm @30m |
| Self Leveling Rotating Laser |
|
|
|
|
|
| |
PLS HVL 100
|
|
|
|
|
|
Have it all with the plumb, level and square set out / reference laser with 360 degree lines in all three planes X,Y and Z! The ultimate in laser levelling technology.
| PLS HVL 100 Specifications: |
|
| Range |
150m (Diameters) |
| Weight |
1.2kg |
| Accuracy |
<3mm@20m |
| Self levelling Class II Laser Product |
|
|
|
|
| |
PLS HVE 1000
|
|
|
|
|
|
Exterior / interior large range, fully automatic laser for levelling only.
| PLS HVE 1000 Specifications: |
|
| Range |
600m (Diameter) |
| Accuracy |
2.4mm@30m |
| Self levelling Class II Rotating Laser Product |
|
|
|
|
| |
PLS FT90
|
|
|
|
|
|
Interior square floor & tile layout laser, with a durable cast aluminium casing for added protection.
|
| Range |
30m |
| Accuracy |
2mm@6m |
| Class II Laser Product |
|
|
|
|
| |

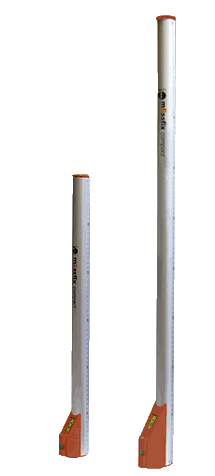

Nedo mEssfix compact
|
|
|
|
|
|
Measure interior dimensions quickly and reliably with the lightweight
and handy telescopic measuring
stick Nedo mEssfix compact.
Simply place the mEssfix
compact in position, pull out the
extensions and conveniently read off
the measurement from the analogue
display. Ideal in interior outfitting.
Nedo mEssfix compact is very
handy thanks to its compact dimensions,
its light weight and its round
telescopic tubes.
The display is attached at the foot of
the mEssfix compact, so when
measuring windows, the measured
values can conveniently be read off
at eye level. A two-way bubble is
integrated into the display housing
to facilitate taking horizontal and
vertical measurements.
Features:
- Compact dimensions
- Robust display housing with horizontal/vertical bubbles
- Circular telescopic tubes for convenient handling
- Supplied with case as a standard
| Specifications: |
| Ref.-No. |
F 380 211 |
F 580 211 |
| Measuring range |
0.60 m to 3.04 m |
0.91 m to 5.01 m |
| Length retracted |
0.60 m |
0.60 m |
| Graduations |
mm |
mm |
| Weight |
0.9 kg |
1.4 kg |
|
|
|
|
| |
Nebo Quasar 6
|
|
|
|
|
|
Self-levelling cross line laser for levelling, aligning, plumbing and
marking 90° angles. Four vertical laser lines and one horizontal laser
line generate a cross on one wall and on the ceiling. An additional
plumb beam transfers the cross from the ceiling to the floor.
Suitable laser for interior finishing and exterior applications.
Features:
- Highly visible laser beams; can be switched on separately
- Reliable self-levelling function
- Compensator lock for transportation
- Tangent screw for fine adjustment
- Reliable magnetic damping
- Rugged design with shock protection system
- Pulse mode for outdoor use with laser receiver
- Quick charge, max. 2.5 h to charge batteries
- Run charge function
- 5/8’’ thread
| Specifications: |
| Ref.-No. |
460 930 |
| Accuracy |
± 3 mm/10 m |
| Self-levelling range |
± 3.5° |
| Laser |
laser class 2M, 635 nm |
| Working range |
25 m without receiver
50 m with receiver |
| Power supply |
rechargeable batteries NiMH, 2300 mAh |
| Operation duration |
approx. 15 h |
| Protection class |
IP 54 |
| Weight |
1.5 kg |
|
|
|
|
| |

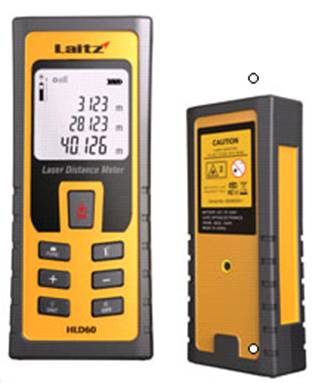

HLD60
|
|
|
|
|
|
Features:
- Measuring distances and calculating results are accurate
- Shortcut keys for addition, subtraction, area and volume calculation make measurement fast and reliable.
- Historical measurements can be stored.
- Measuring units can be conversed from each other: m/ft/in.
- Switch-off laser beam within 30 seconds, and switch-off device within 180 seconds.
- Laitz spot is clearly visible.
| Technology Data: |
| Measuring Range |
0.05 - 60m |
| Measuring Accuracy |
±1.5mm |
| Laser Type |
635nm, <1mW, Class 2 |
| Operating Temperature |
-10°C up to +50°C |
| Storage Temperature |
-20°C up to +65°C |
| Historical Measurements |
50 values |
| Splash Proof/ Dust Protected |
IP54 |
| Batteries |
AAA, 2x1.5V, up to 5000 measurements |
| Dimensions |
126 x 54 x 28mm |
| Weight with batteries |
approx. 195g |
| Features and Functions: |
| Distance Measurement |
Available |
| Area Measurement |
Available |
| Indirect Measurement using Pythagoras |
Available |
| Continuous Measurement |
Available |
| Max/Min Measurement |
Available |
| Data Addition/Subtraction |
Available |
| Display illumination |
Available |
| Multi-functional end piece |
Available |
| Auto Scale Technology |
Available |
| Tripod Thread |
Available |
| Stake Out Function |
Available |
| Packing list: |
| Laser distance meter Laitz HLD60 |
| Bag |
| Batteries |
| Hand loop |
| User Manual |
| Warranty card |
|
|
|
|
| |
|
|
|
